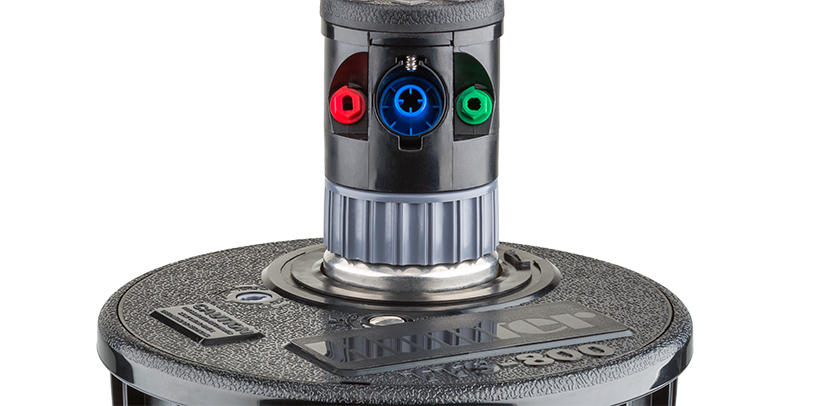

Hunter TTS-800 Series Golf Heads


Hunter TTS-800 Series Golf Heads

These rotors have Total-Top-Serviceability, powerful G-800 Series gear drives, and the largest flange compartment in the industry to accommodate all two-way module components.

Accessories Available Low Bounce Cover & No-Bounce Cover

☑ Wide range of irrigation equipment for farms, growers, small holders, gardens, and sports, plus swimming pools.
If you cannot find what you need or have a special large order, contact us for best options and pricing.

Hunter TTS-800 Series Golf Heads

Patented TTS technology allows for every serviceable element of the rotor to be accessed through the top. Mechanical and electrical, big and small, you can get to every component without disturbing the playing surface. That means there’s no more digging, no more unsightly scars, and more importantly, one less item on a busy superintendent’s schedule.

Radius 11.3 -28.7m

Comes with standard nozzle No 25.

885 is Adjustable Arc (50 degree to 360 degree)

Wide range of nozzles including 12 standard trajectory (22.5) & 9 low angle (15 degree) nozzles along with a range of 8 contour back nozzles.

Flow rate 2 – 13.5m3/hour (33-225 l/min)

Required pressure range 3.4 to 6.9 Bar

Built in adjustable pressure regulation.

3 year warranty

New TTS compartment with cable ports large enough for DBR-Y connectors.

New modular colour coded parts for even easier servicing and space saving

Accessories Available Low Bounce Cover & No-Bounce Cover


Additional information

Catalogue Number

HSGT885E Adjust. Arc Electric VIH 1 1/2" Acme, HSGT885DIH TTS-885DIH TTS-885 DIH, PC/FC 1 1/2" Acme, HSZ987200SP Low Bounce Cover, HSZ987100SP No Bounce Cover
