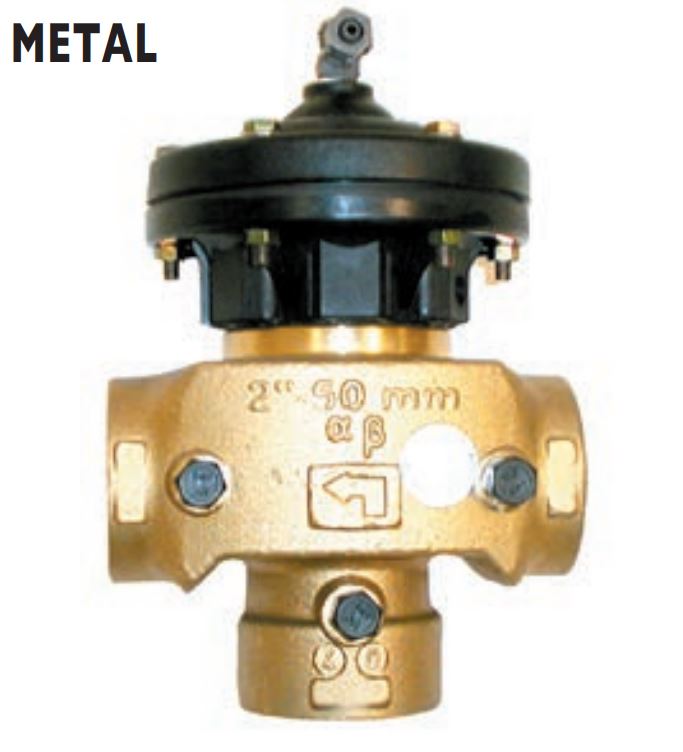

Bermad Metal Backwash Valve, BSP 2″
The Bermad patented back wash valve is a compact 3 ported model designed for easy installation and long, trouble free service. A unique diaphragm – actuated plug assembly which keeps the supply port closed while opening the backwash port and vice-versa.
The backwash valve can be used in filtration systems which have at least two parallel filters, as the water of one filter is used for back-washing the other. Upon receiving a hydraulic command from the controller the valve shuts off supply and opens the drain.
Operating Pressure Range: 0.7 – 225 PSI
Temperature Range: up to 80°C (180°F)
Valve Size: Female BSP, 2″ x 2″
Waste Outlet: 2″ BSP
Body Material: Brass
