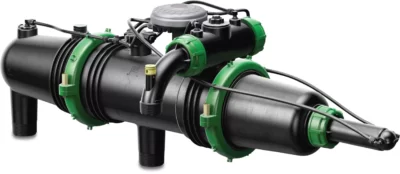

Amiad Automatic filter, type Mini Sigma On-line
fibreglass-reinforced nylon, stainless steel 316
The Amiad Mini Sigma for online installations.
The Amiad ADI-P 12VDC controller with a 2W-Latch solenoid allows the user to monitor and control the filter from the Amiad app on your mobile via Bluetooth.
The app will provide the following information:
-DP and flush cycle counters.
– Alerts (low/high pressures) and low battery.
– Reports and performance history data.
Self-cleaning cycle is trigged by an integrated DP switch which is initiated by: a Pre-set 0.5 signal from DP switch, a time interval or a manual start.
Flushing time of 10 seconds.
Delivered with 1.5” flush valve.
Connection male thread
Material fibre glass-reinforced nylon
Material filter element stainless steel 316
Backflush Outlet1 1/2 “
Backflush flow rate8,7 m³/h
Filter area1.2 m²
